Showing all 7 results
-

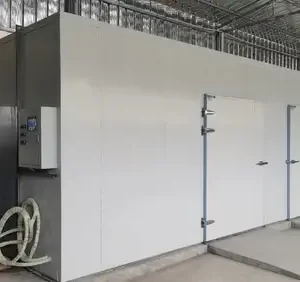

Dehydrator
Description:
Construction: All internal parts and all external non-contact parts either made of or covered with M.S. Electrically heated.
DRYING CHAMBER:
- Double Wall Construction
- The Oven Will Be Insulated With 100 Mm Thick Glass Wool Insulation All Sides of The Dryer
- Design of Panels Will Be Such That Inner & Outer Wall Contact Minimum to Minimize Heat Losses through Conduction.
- Double Walled Door in Two Parts at Front Side Will Be Provided with Silicon Rubber Gasket, Heavy Duty Male-Female Type Hinges & Ball Catch Locking System.
- Side Runners Will Be Provided for Resting Trays Inside the Dryer.
- AIR RECIRCULATION. Coaxial fan driven by 0.5 HP/1440 RPM/ motor through Bearings & Belt Driven Fan 1 No for Uniform Temperature throughout the Dryer.
- HEATING: Tubular Air Heaters on Both Sides.
- Fresh Air Inlet: Fresh Air Inlet with Filter Provided at Side of The Tray Dryer.
- SAFETY: Safety Controller Will Be Provided. If In Case Main Digital Controller Fails, Safety Controller Will Control the Set Temperature.
- Heaters & Blowers Are Interlinked. Heaters Will Not Switch on Unless Motors Are In “On” Position.
- Overload Relay Provided for Motor Starter.
- MCB Provided for Mains.
- Limit Switch Will Be Provided on Front Door, When Doors Open It Will Cuts Off Supply of Motor & Heaters.
DIGITAL TIMER:
- Inbuilt Digital Timer, Range 0 To 999 Minutes with Alarm Will Be Provided with The Unit.
- Insulation Glass wool.
- M.O.C: MS Painted.
- Capacity:- Trays: – 6 nos to 192 nos.
-

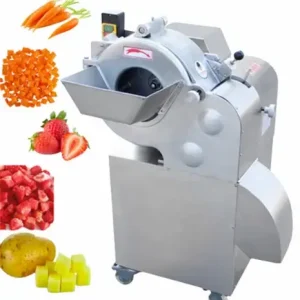

Dicing
Description:
Function: For dicing of mangoes without seeds and fibers.
Brief spec:
- Feeding tray for feeding Mango slices in the dicing chamber.
- SS High seed rotating knifes inside the chamber.
- Discharge tray at the bottom.
- Suitable to Dice 6-25mm size.
- M.O.C: Contact parts SS
- Elec. Power: single phase. / three phase
- Capacity: 50 – 2000 kg / hr approx.
-

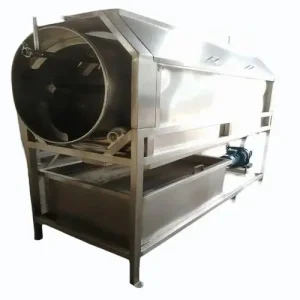

Drum Washer
Description:
Function: For washing of root vegetables like ginger, potatoes, turmeric, beetroot etc.
Brief spec: Rotary Pipe drum rotating at slow speed.
- Tumbling arrangement for vegetables.
- Peddles, screw plate are fitted in drum for forward movement/ retention time of vegetables.
- Waste water collection tray at bottom.
- Complete with Feed hopper, Discharge Chute, chain/belt guard, motor cover etc.
- Water spraying arrangement inside drum.
- M.O.C.: Contact SS 304 /Non-contact MS
- Input Capacity: 100 – 5000 Kg / Hr.
- Elec. Power: – 3 Ph / 415 V / 50 Hrtz.
- Motor: Hindustan /Eltek/Make, Gearbox: Bonfiglioli / equivalent make
-

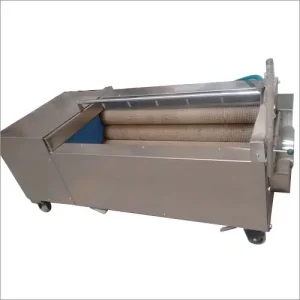

Peeling Unit
Description:
Function: For Peeling of Ginger, potatoes, beetroot, raw papaya etc.
Brief spec:
- Made of high-quality stainless steel, meeting food safety requirements, stable operation, and durability.
- High-quality brush, not easy to deform.
- Multiple rows of sprinklers are used above, and the surface of the fruits and vegetables is cleaned by brushing by the rotation of the brush.
- The bottom of the box is bevelled to facilitate the discharge of sediment, and the filter can also be drained.
- Capacity: 15 Kg batch – 90 Kg batch.
- M.O.C.: SS 304.
Elec. Power: – 3 Ph / 415 V / 50 Hrtz.
-

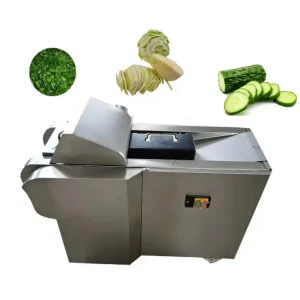

Slicing
Description:
Function: For slicing of Fruits & vegetables.
Brief spec:
- Feed Hopper for feeding peeled vegetables in the slicing chamber
- SS High seed rotating knifes inside the slicing chamber.
- Discharge tray at the bottom.
- M.O.C: contact parts SS
- Elec. Power: 3 Ph./ 415 V / 50 Hrtz.
- Capacity: 100 – 1000 Kg / hr approx.
-

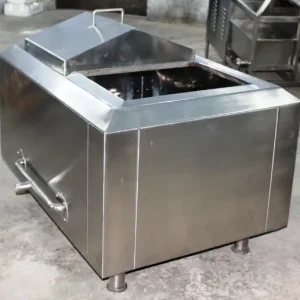

Steam / Water Batch / blancher
Description:
Function: For blanching of Fruit & Vegetable up to 90 deg.
Brief spec:
- Rectangular tank, perforated/grilled false bottom.
- Electrical heaters mounting arrangement.
- Water sealed top covers.
- perforated baskets with handles.
- M.O.C.: SS 304.
- Holding Capacity: 15 – 60 Kg batch
- Elec. Power: – 9 kw / 3 Phs. / 50 Hrtz. / 415 V.
