Mango Processing Machinery

Read more

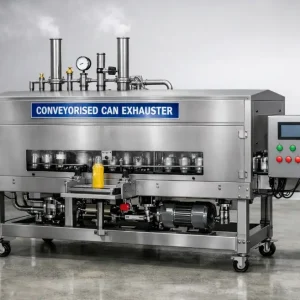

Can exhauster
Description:

Function: For Exhausting air out of filled cans before seaming. (3 kg cans)

Stainless steel top cover & drip tray at bottom with common drain.

Fixed speed chain Drive. (Interchangeable by suitable chain wheel)

Arrangement of perforated pipes for proper distribution of steam.

Food grade curtain at entry & exit to avoid leakage of steam.

Elec. Power: 1.5 Hp. / 3 Ph / 430 V / 50 Hrtz

M.O.C.: Contact parts SS 304/Non-contact MS
Read more
Can seamer
Description:

Capacity 30-40 cans per minute. Arranged for motor drive less electrical,

Change parts comprising of Seaming Rollers, Can Slide Can Guide and Seaming Chucks for – 300 Dia [No. 1 Tall]

401 Dia [A 2 ½ 850 gm]

603 Dia [A 10 3.1 kg]

Electricals:

2 HP 930 RPM motor, Switchgear, Starter, (Suitable for operation of 400 V  5% 3 phase 50 cycles supply) Pulley, V-belt, Cables, Conduits and fittings. Toolkit
Read more

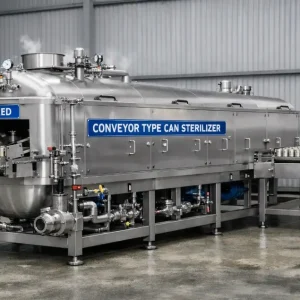

Can sterilizer
Description:

Function: For sterilization and Washing of the empty reformed cans.

Construction:

Wire mesh/slat conveyor.

Sterilization chamber with water sealed top cover

Open coil fitted under wire mesh conveyor for water and steam spray.

Water spray at feed end and Steam spray at discharge end.

Elect power: 3 Ph / 430 V / 50 Hrtz

M.O.C.: Wetted parts SS 304
Read more
Retort
Description:

Function: For pressurised sterilization of pulp in cans.

Mild steel construction vertical tank with 4 leg support.

Complete with steam inlet, Water inlet, drain, Temperature gauge, pressure gauge, safety valve etc.

Heat resistant painted

Heavy duty silicone gasket for sealing.

2 / 3 crates capacity.

Capacity: 480 cans of A 2 ½ Size. & 100 cans of A10 size
Read more
Steam Kettles
Description:

Function: Cooking / Concentrating, preparation of pulp and mixing with other additives etc.

Brief spec:

Hemi spherical bowl /closed type.

Heavy duty tripod/four legs structure.

Complete with spring loaded and adjustable Teflon scrapers etc.

All necessary steam fittings like Y strainer, Temp gauge, Pressure gauge, steam trap etc.

Motor & pulley Guard etc.

All necessary steam fittings, safety valve, steam trap etc.

M.O.C.: SS 304.

Holding Capacity: 100 – 2000 Ltrs. (water volume)

Elec. Power: – 3 Phs. / 415 V / 50 Hrtz.
Read more
Two stage Pulper
Description:

Pulper mounted on rigid structure with coarse pulping & fine pulping chambers.

Coarse Pulping will have 2 Nos. of Brushes & 2 Nos. of Cutting Beater blades.

Polypropylene base nylon Brushes caged.

Openable cover on top for easy cleaning after production batch.

Product outlet from stage one will transfer stage two from pipe.

M.O.C.: SS 304.

Input Capacity: 100 – 5000 Kg / Hr. (soaked tamarind)

Elec Power: – 3 Phs. / 415 V / 50 Hrtz
