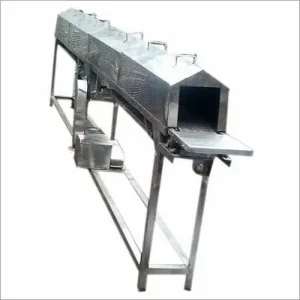

Canning
Description:
- Sterilization chamber with water sealed top cover
- Open coil for water and steam spray.
- Water spray at feed end and Steam spray at discharge end.
- Complete with necessary steam fittings, inlet connections etc.
- Food grade curtains at feed and discharge end to avoid leakage of steam.
- Drain, condensate collection tray at bottom.
- Square tube self-supporting structure.
- Elect power: 3 Ph / 430 V / 50 Hrtz
- M.O.C.: Wetted parts SS 304 / Non-Contact MS
Function: For Exhausting air out of filled cans before seaming.
- Water Sealed top covers.
- Stainless steel chain with folded stainless-steel slat
- Arrangement of perforated pipes for proper distribution of steam.
- Food grade curtain at entry & exit to avoid leakage of steam.
- Elec. Power: 3 Ph / 430 V / 50 Hrtz
M.O.C.: Wetted parts SS304 / Non-contact MS
-

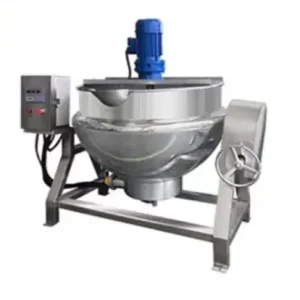

Cooking Unit
Description:
Function: Cooking / Concentrating, preparation of pulp and mixing with other additives etc.
Brief spec:
- Hemi spherical bowl /closed type.
- Heavy duty tripod/four legs structure.
- Complete with spring loaded and adjustable Teflon scrapers etc.
- All necessary steam fittings like Y strainer, Temp gauge, Pressure gauge, steam trap etc.
- Motor & pulley Guard etc.
- All necessary steam fittings, safety valve, steam trap etc.
- M.O.C.: SS 304.
- Holding Capacity: 100 – 2000 Ltrs. (water volume)
- Elec. Power: – 3 Phs. / 415 V / 50 Hrtz.
-
-

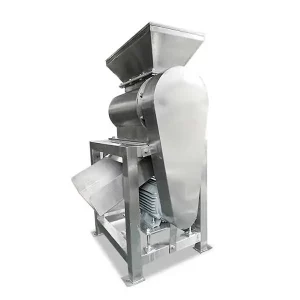

Fruit Crusher
Description:
- Chamber with serration inside for crushing of Fruits.
- High speed rotor /chopper fitted inside for crushing
- Shaft supported on heavy duty housing with bearings.
- Open able front door for easy cleaning of machine.
- Easily removable screen for cleaning and changing.
- Motor / Structure covered from all side to avoid material spillage and safety.
- M.O.C.: Contact Parts SS 304 / Structure MS
- Elec. Power: – 3 PHs / 415 V / 50 Hrtz.
- Qty: – 1 No.
-
Fruit Pulper Extractor
Description:
- Pulper mounted on rigid structure with coarse pulping & fine pulping chambers.
- Coarse Pulping will have 2 Nos. of Brushes & 2 Nos. of Cutting Beater blades.
- Polypropylene base nylon Brushes caged.
- Openable cover on top for easy cleaning after production batch.
- Product outlet from stage one will transfer stage two from pipe.
- M.O.C.: SS 304.
- Input Capacity: 100 – 5000 Kg / Hr. (soaked tamarind)
- Elec Power: – 15 HP. (coarse), 10 Hp (Fine) / 3 Phs. / 415 V / 50 Hrtz
Qty: – 1 No.
-

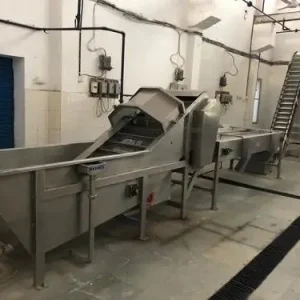

Fruit Washing Unit
Description:
- Stainless steel tank with legs, cross supports etc.
- High-speed Blower for bubbling effect through perforated air pipes installed at the bottom of the tank.
- Slat Conveyers with Flights
- The Fruit washer tank provided with drain connection, Water level adjusting arrangement with overflow Connection, and fresh water spraying arrangement,
- Motor –Hindustan / equivalent Make, Gearbox: Bonfiglioli /equivalent make.
- Capacity: 100 – 5000 Kg / Hr.
- Elec. power:
- Blower: 3 Ph / 420 V / 50 Hertz. Main Drive: 3 Ph / 420 V / 50 Hertz.
- M.O.C: – SS 304
-

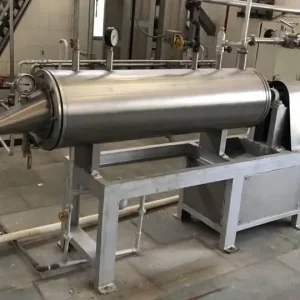

Pasteurizers – RSSP
Description:
Function: – For heating of Pulp up to 92 Deg. C.
Construction:
- Teflon Scrapers for proper stirring and preventing product from charring.
- Steam Piping fitted with ¾” BSP valve, Pressure Safety valve, Pressure Gauge, Air Vent, Condensate outlet connection complete with Bucket type Steam trap, Bypass Valve, Y strainer. For cooling necessary interconnecting piping.
- Mechanical seal arrangement at feed end.
- Complete with VDF, Control Panel and necessary electrical fittings.
- Motor – Hindustan/equivalent Make, Gearbox: Bonfiglioli / equivalent make.
- Elec. Power: A/c drive & Control Panel.
- MOC: Contact parts SS 304 / Non-contact MS
- Capacity: 100 to 5000 Kg/ Hr.
-
Pasteurizers – Tube In Tube Type
Description:
Function: The system is designed for HOT Filling in PET bottle and pasteurizing fruit-based beverages. The system includes heating section, tower water return cooling section and all other accessories. The unit is complete with balance tank, sanitary stainless-steel pumps, corrugated tube heat exchanger for heating & cooling, return cooler, necessary interconnecting pipelines, automated valves, fittings and other process operations, Auto based control panel, etc. All the components shall be mounted on SS fabricated skid.
TECHNICAL SPECIFICATION:
- Product RTS Beverage
- Capacity of Plant 150 LPH
- Heat treatment Temperature Program ᵒC 30 – 92 – 60ᵒC
- Temperature of Pasteurisation ᵒC 92ᵒC
- Temperature of Filling ᵒC 60ᵒC
- Tube MOC SS 304
- Return Cooling
